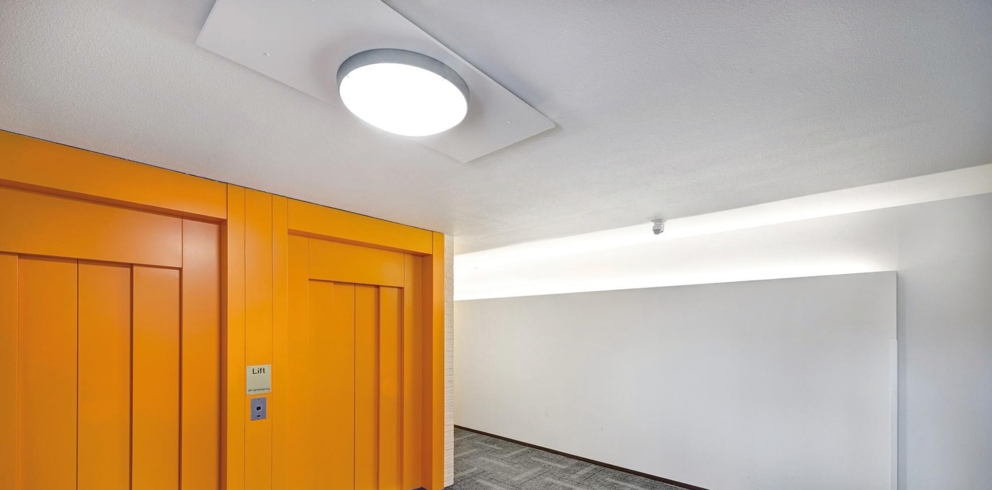

Lightronics armatuur DOTT EXTREME in de hal van een appartementencomplex

DOTT EXTREME

EXTREMELY IMPACT-RESISTANT LIGHTING

The DOTT EXTREME is characterised by a high light output and extreme impact resistance (≥5 IK 10). This circular luminaire is suitable for challenging applications such as tram/bus/metro and train stations and prisons. In addition, the DOTT EXTREME, like the other units in the DOTT family of luminaires, can be used for exterior lighting in entrances and entrance halls.

Short overview

Standard

CE RoHS ENEC ENEC Plus To be mounted on normal to highly flammable materials Standard Easy Light version Exit route IP65 5 X IK10 (100J)

Option

Electrical protection class II optional Dali 2 optional Optional Comfort Light NextGen performance Retrofit optional SmartScan optional Optional exit route

Applications
Residential areas, entrances, train stations, bus stations, tunnels and underpasses, prisons

Luminaire type
Surface-mounted luminaire

Light cover
UV-stabilised polycarbonate, opal or frosted

Color
RAL 9010, RAL 9011, DB 703

Housing
Aluminium coated

Lumenrange
From 3800 to 8000

CRI
> 80

IP
IP65

IK
5 X IK10 (100J)

Lightprofiles
Circular distribution

Cable entry
Back, Side

Downloads
DOTT EXTREME Leaflet DOTT EXTREME Installation instructions DOTT EXTREME LDT Files PRICELIST RESIDENTAL- AND PUBLIC SPACES
Lightronics armatuur DOTT EXTREME in een appartementencomplex

DOTT EXTREME benefits

AN UNMISTAKABLE SIGNATURE

The different variants in the DOTT luminaire range make it possible to create a residential complex that has its own clear visual signature and identity. For example, you can fit the DOTT in the external access gallery, the DOTT M in the stairwell and the DOTT XL in the entrance hall and near the lift doors. The DOTT EXTREME is suitable for entrances and entrance halls. You can choose between a frosted or opalescent diffuser. The luminaire can also be used as emergency lighting. The DOTT EXTREME features a special coating to ensure that this robust luminaire can withstand arduous environments such as the sea climate in coastal areas. Sophisticated technology ensures even light distribution.
